€0.85
Newly R40 Rail mounting clip – per piece

Newly R40 Rail mounting clip – per piece

3010400 / K5-R10.3

Available in white

Please add your accessories

Newly Universal Wall Plug - 6mm €0.08
Newly R-Rail Screw - 3.5x45mm €0.11
Newly R-Rail Drywall Screw - 3.5x45mm €0.16
GeckoTeq PZ2 Screw Bit €0.99
GeckoTeq Bit holder €4.50
Number of products
total price VAT included

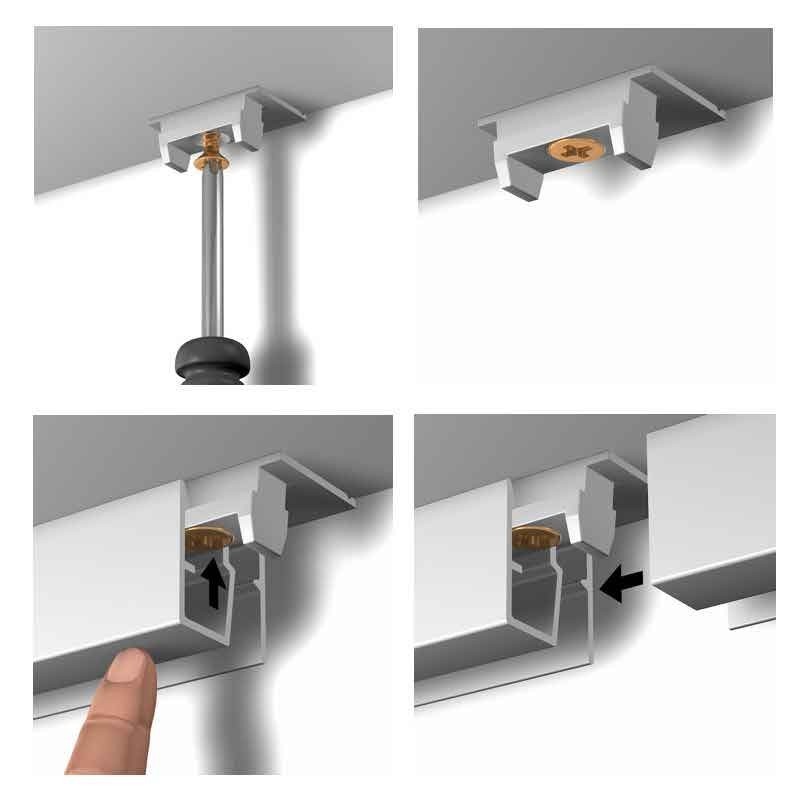

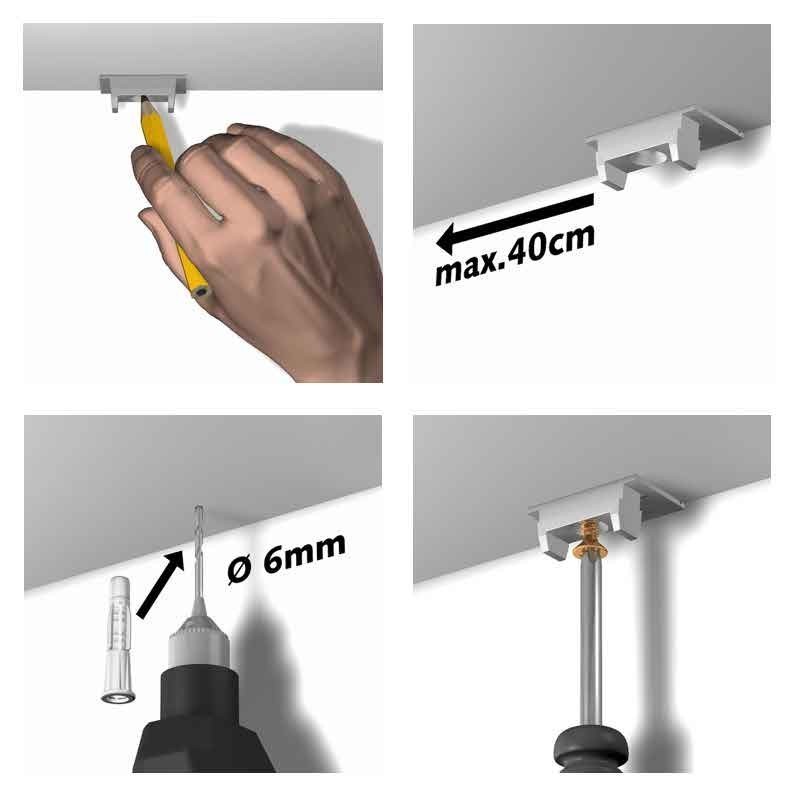

This clip is for mounting the Newly R40 UP Rail on the ceiling. Use 3 clips per linear meter.

This plastic clip in white is a mounting clip for the Newly R40 Ceiling Rail. This is very easy to assemble because we opted for suspension from the plastic instead of from the aluminum of the profile.

The picture hanging system is clicked onto these clips (3 clips per meter) that are attached to the ceiling. The beautiful, sleek square shape of the rail fills the space between wall and ceiling and makes the picture hanging system discreet and unobtrusive.

Due to its square shape, the Newly R40 can also simply be mounted somewhere in the middle of a ceiling, for example in a shop window. This rail also has a nice straight back.

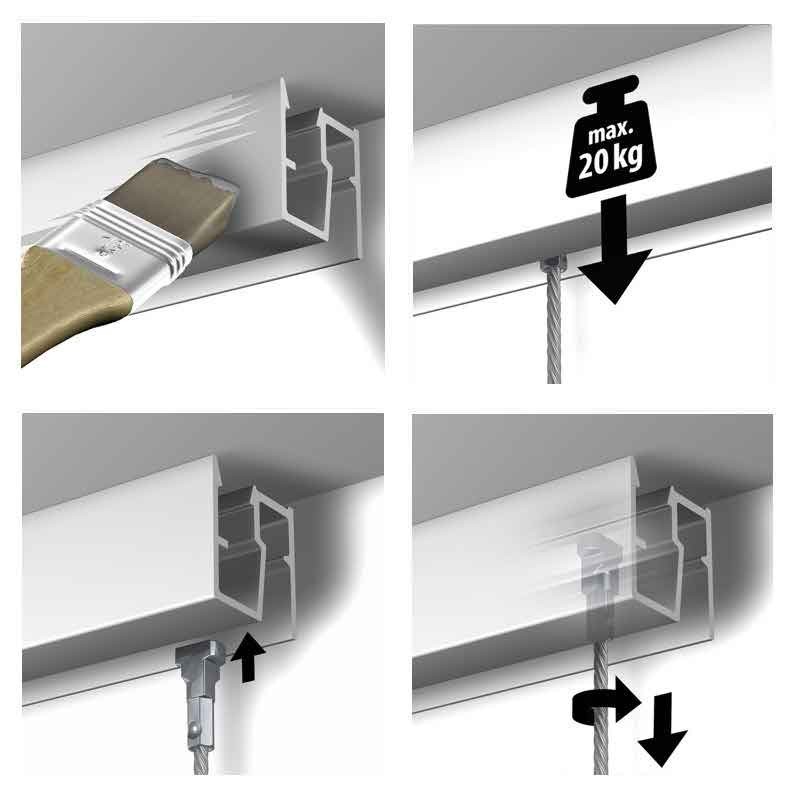

The maximum load capacity of 20 kg/m also makes the R40 Rail a solid and reliable suspension system.

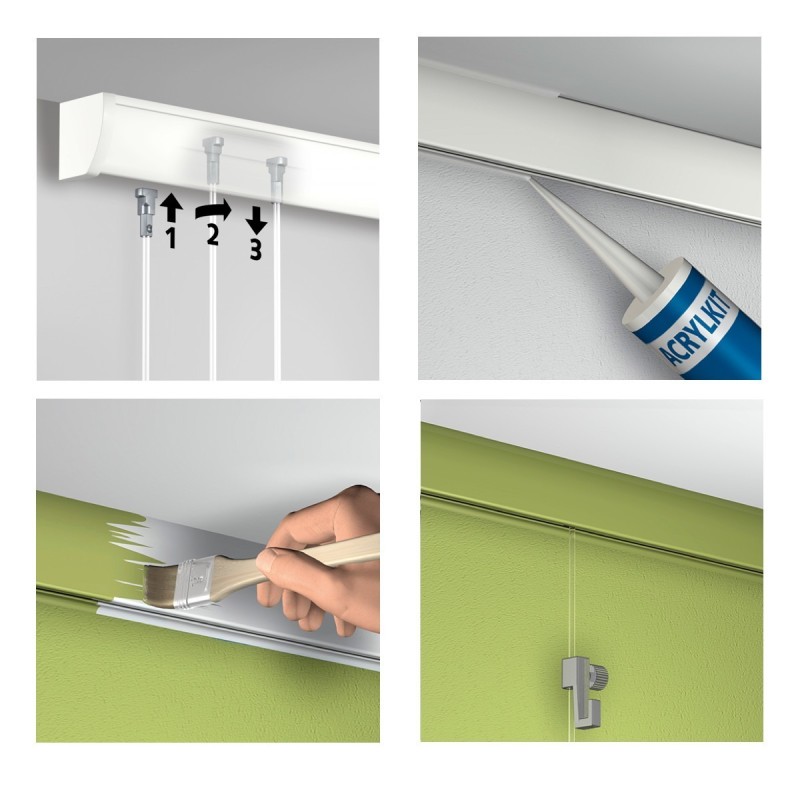

The rail has a white, primer version: the hanging rail can be painted in any desired color (for example the color of the wall and/or ceiling). The Twister hanging wires can be clicked anywhere in the rail. When ceiling mounting is required, because the walls must not be damaged or because it is not possible to attach a rail to them, the R40 Rail is the ideal solution for flexible design of the walls.

3010400

Data sheet

Colour
White
Delivery time
3 business days
Mounting type
(System-) Ceiling mounting
Carrying capacity per meter
20kg
Clips per meter
3
